Intrafix® Primeline

Standard IV administration set for infusion therapy

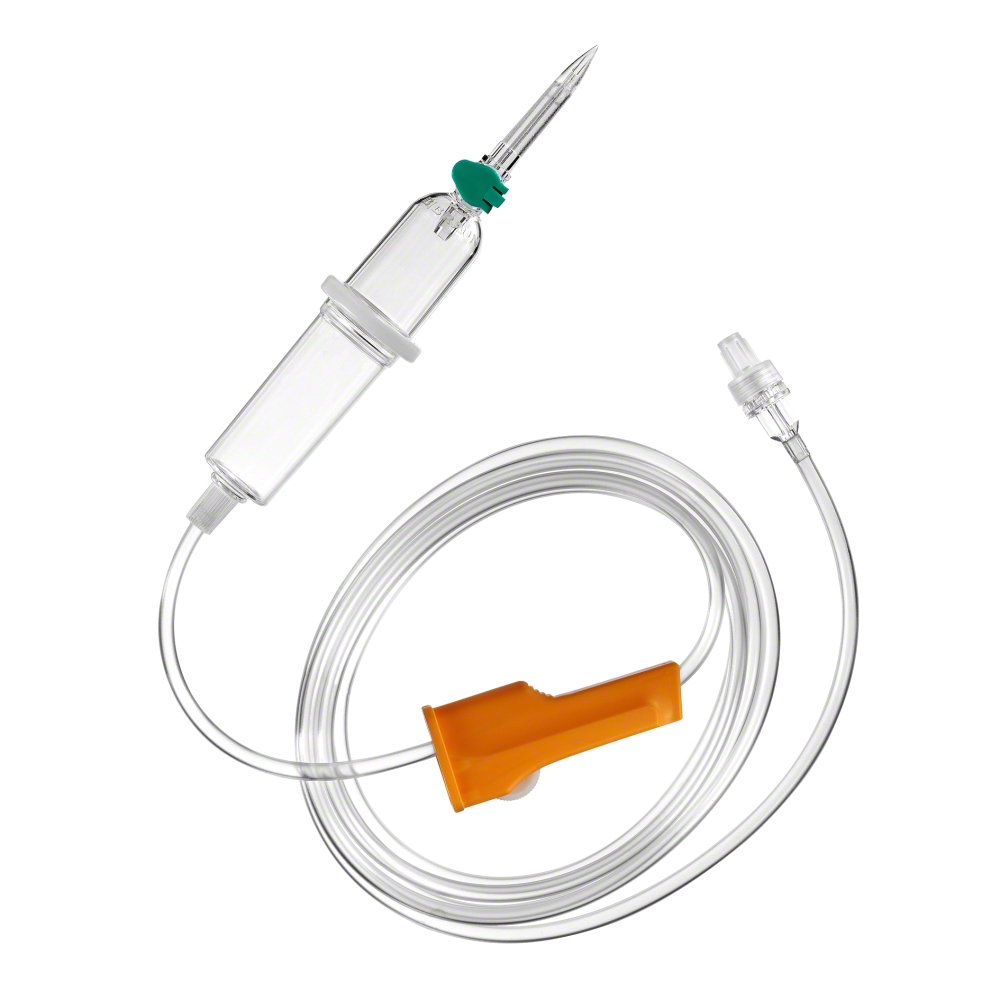

Picture of product Print
Intrafix® Primeline

Gravity sets (G) are IV administration sets for gravity infusion.
Pressure sets (P) are IV administration sets for gravity and pressure infusions with compatible (non-dedicated) infusion pumps (pressure resistant up to 2 bar acc. to ISO 8536-8).

Advantages

3-part drip chamber design

  • With elastic bottom chamber and transparent dome. Allows to see drop forming and constant visual monitoring of the flow rate of infusion solutions.
  • With Micro-Organism tight air vent filter (bacteria-tight and viral filter efficiency) with closable snap cap. Prevents the risk of contamination while venting the solution container
  • With fluid filter (15µm mesh size) to provide high flow rate
  • With clear and easy to pierce spike, featuring separated fluid inlet and air outlet to reduce risk of air entrainment

Tube

  • Fluid line from the infusion bottle to the patient.
  • Soft and clear tubing that allows observance of air bubbles.
  • Standard dimensions: lumen 3 x 4.1 mm and length 180cm

Roller clamp

  • Enables fine and flexible adjustment of flow rates
  • Offers spike protection for safe disposal
  • With tube dock designed to support handling during priming

Patient connector

  • With Luer Lock or screw tight Spinlock adapter to prevent inadvertent disconnection (refer to available versions)
  • With back check valve to reduce the risk of back flow (versions with back check valve)

Material related information

  • Not manufactured with latex / natural rubber
  • Not manufactured with DEHP
  • Not manufactured with PVC (only applicable for versions with PUR tubing)
  • Not manufactured with BPA (except IV-Sets with Spinlock adapter, Discofix® stopcock and/or needle-free injection ports)

Duration of use

  • Duration of use is dependent on the intended therapy according to the SPC of the drug or solution
  • In general, change of IV administration sets should occur according national guidelines (e.g. CDC guideline) and/or hospital protocols
  • IV administration pressure sets (P) should be changed after 24h at the latest if used with an infusion pump

Options of standard add-on-devices; for example

  • Various tubing lengths for e.g. better patient mobility
  • Tubing material not made with PVC or tubing material UV-protected up to 500nm wavelength to comply with SPC of corresponding drugs
  • Infuvalve® back check valve preventing backflow of solutions and blood
  • Discofix® stopcock for needle free injection, aspiration and parallel infusion
  • Needle-free IV access with SafeFlow® or CareSite® connectors to reduce the risk of needlestick injuries
